Auto Repair Shop Layout Design: Floor Plan Ideas, Bay Layout, and Workflow Tips

Your bays can be full and your auto repair shop can still be slow.

A technician walks across the floor for a part. A service advisor checks three times to see whether a vehicle is ready. One car blocks another. A customer arrives for pickup, but the repair order is still waiting for approval.

None of these delays look serious on their own. Together, they reduce throughput every day.

That is why auto repair shop layout design is not only about where to place lifts, walls, desks, tools, and waiting chairs. It is about how work moves.

A good layout helps vehicles, technicians, parts, customers, and repair information move with less friction. A poor layout creates walking, waiting, searching, rechecking, and avoidable communication gaps.

This guide explains how to plan an auto repair shop layout around floor plan design, service bay layout, parts room placement, vehicle staging, technician movement, and workflow visibility.

What Is Auto Repair Shop Layout Design?

Auto repair shop layout design is the planning of service bays, vehicle paths, customer areas, parts storage, equipment placement, technician movement, parking, and delivery zones inside a repair facility.

The goal is not just to make the shop look professional. The real goal is to help the shop complete more quality repair orders with less confusion.

A strong auto repair shop floor plan should answer five questions:

1. Where does the customer enter?

2. Where does the vehicle go next?

3. Where does the technician work?

4. Where do parts, tools, and approvals come from?

5. Where does the vehicle wait before delivery?

If those movements are unclear, the shop depends on memory, phone calls, shouting across bays, and constant walking. That may work in a very small shop for a while. It breaks as the shop grows.

Why Auto Repair Shop Layout Affects Throughput

Many shop owners think layout is a construction decision. It is also an operating decision.

Your repair shop layout affects:

• How many vehicles can move through the shop each day

• How much time technicians spend walking instead of working

• How often bays are blocked by vehicles waiting for parts or approval

• How quickly service advisors can update customers

• How safely people move around lifts, tools, and vehicles

• How professional the customer experience feels

The question is not only, “How many bays can we fit?”

The better question is:

How many completed repair orders can this layout support without creating bottlenecks?

That is the difference between a floor plan and a working repair operation.

Auto Repair Shop Floor Plan: What Every Layout Needs

An auto repair shop floor plan should show more than service bays. It should map the full movement of the shop, from customer arrival to vehicle delivery.

At minimum, your floor plan should include:

• Customer reception

• Waiting area

• Vehicle intake

• Inspection space

• Service bays

• Parts room or parts counter

• Tool and equipment zones

• Vehicle staging area

• Quality check area

• Delivery parking

• Customer parking

• Staff movement paths

The best auto repair shop floor plan reduces unnecessary movement between the technician, service advisor, parts counter, and customer handover area.

A floor plan that looks clean on paper can still create delays if it does not show how people, vehicles, parts, and information move during a real workday.

The 5-Flow Framework for Auto Repair Shop Layout

Before planning walls and lifts, map the five flows inside your shop.

1. Customer Flow

Customer flow covers how a customer enters, checks in, approves work, pays, and collects the vehicle.

The customer should not need to cross the repair floor to reach reception, payment, waiting, or delivery. The front area should feel clear, safe, and separate from active repair work.

Ask:

• Can a first-time customer find reception easily?

• Can the customer wait without standing near moving vehicles?

• Can the service advisor explain the repair clearly?

• Is vehicle delivery simple, or does the team search for the car when the customer arrives?

Customer flow is not decoration. It affects trust.

2. Vehicle Flow

Vehicle flow covers how a car moves from arrival to intake, inspection, repair, quality check, and delivery.

A good auto shop layout avoids unnecessary reversing, crossing, double-handling, and blocked exits. Vehicles waiting for parts or authorization should not occupy active repair bays.

Ask:

• Do waiting vehicles block working bays?

• Are finished vehicles mixed with vehicles waiting for parts?

• Can tow-ins and non-running vehicles be handled without disrupting the floor?

• Is there a clear path from intake to delivery?

A vehicle should not move five times before repair work even starts.

3. Technician Flow

Technician flow covers how technicians move between the vehicle, tools, parts, service advisor, and shared equipment.

Every unnecessary walk is time taken away from repair work.

Ask:

• Are fast-moving tools and parts close to common jobs?

• Is shared equipment placed where multiple bays can access it?

• Are walkways clear?

• Can technicians see their next job without asking the advisor?

A mechanic shop layout should reduce technician walking time, not add to it.

4. Parts Flow

Parts flow covers how parts are requested, received, stored, issued, returned, and billed.

A parts room is not just storage. It is a control point.

Ask:

• Where do new parts arrive?

• Who checks parts against the repair order?

• Where are parts stored before installation?

• How are wrong parts or returns handled?

• How does the invoice reflect the actual parts used?

A layout that ignores parts flow will create delays even if the service bays are well designed.

5. Information Flow

Information has a layout too.

A repair order moves from advisor to technician to parts to customer approval to billing to delivery. If that information lives on paper, spreadsheets, or disconnected tools, the physical layout cannot solve the whole problem.

Ask:

• Can the advisor see job status without walking to every bay?

• Can the technician update progress from the work area?

• Can the parts team see what is required?

• Can the manager see which jobs are stuck?

This is where physical layout and digital workflow need to work together.

Auto Shop Layout Ideas for Better Vehicle Flow

Good auto shop layout ideas usually start with one simple rule: avoid crossing paths.

Customer vehicles, technician movement, parts movement, tow-ins, and completed vehicles should not all compete for the same space.

Here are practical layout ideas that help vehicle flow:

• Keep intake separate from active repair bays

• Create a marked inspection area near reception

• Move waiting-for-parts vehicles out of working bays

• Keep completed vehicles close to the delivery area

• Leave a clear path for tow-ins and non-running vehicles

• Place quick-service work away from long repair jobs

• Keep customer parking separate from repair staging

• Avoid placing parts receiving in the customer path

The goal is not to make the shop look larger. The goal is to make every movement more predictable.

Repair Shop Bay Layout: How to Plan Service Bays

Service bays are the production area of your shop. Their layout depends on your work mix.

A general repair shop, tire shop, quick-service shop, fleet service shop, and diagnostic-focused shop will not need the same bay layout.

When planning repair shop bay layout, consider:

• Vehicle size

• Lift type

• Ceiling height

• Door clearance

• Tool cart movement

• Technician working space

• Shared equipment access

• Alignment or diagnostic equipment

• Air, power, drainage, lighting, and ventilation

• Safe walking paths

Do not treat every bay as identical if your work mix is not identical.

A quick-service bay should support speed. A diagnostic bay should support equipment access. A long-job bay should not block vehicles that could be completed the same day.

Auto Repair Bay Size and Clearance

There is no single auto repair bay size that works for every shop.

Many passenger-vehicle service bays are planned around practical ranges such as 12 to 15 feet wide and 24 to 30 feet deep. But the right bay size depends on vehicle type, lift model, equipment, ceiling height, door clearance, floor load, and local building rules.

Before finalizing bay size, confirm:

• Vehicle mix

• Lift model and installation requirements

• Ceiling height

• Door swing and clearance

• Tool cart movement

• Equipment footprint

• Floor load requirements

• Drainage and fluids handling

• Fire and safety requirements

• Local building code and accessibility rules

Use this guide for operational planning. Final layout decisions should be reviewed with qualified local professionals.

Parts Room Layout for Auto Repair Shops

Parts placement is one of the most important layout decisions in an auto repair shop.

If parts are too far from the bays, technicians lose time walking. If parts are too open, stock control becomes harder. If parts are not connected to the repair order, the shop cannot easily know whether the part is available, issued, returned, or still pending.

Here is a practical rule:

Fast-moving parts should be close to the highest-frequency jobs. Slow-moving or bulky parts can sit farther away, but every part should still be traceable.

For a small shop, this may mean a secure parts room near the bays. For a larger shop, it may mean separate zones for receiving, storage, issue, returns, and dead stock.

A good parts room layout helps answer:

• Is the part available?

• Is it assigned to a repair order?

• Has it been issued to a technician?

• Was it returned?

• Was it billed?

• Should it be reordered?

If your parts process depends on memory, layout will eventually create leakage. If your parts process is connected to the repair order, the shop gets a clearer view of cost, usage, and delays.

For shops where parts delays are a recurring bottleneck, garage spare parts procurement and management software can support better visibility across ordering, receiving, issue, return, and stock control.

Vehicle Staging Area: The Zone Most Shops Forget

Staging is not parking. Staging is job status made visible.

A vehicle waiting for customer approval should not be treated the same as a vehicle waiting for parts. A vehicle waiting for parts should not block a working bay. A vehicle ready for delivery should not be hidden behind cars still waiting for diagnosis.

Use a simple staging model:

Physical Zone	Repair Status	Next Action Owner
New arrival	Awaiting inspection	Service advisor
Estimate parking	Awaiting customer authorization	Service advisor
Parts hold	Awaiting parts	Parts team
Work bay	In repair	Technician
QC area	Quality check pending	Supervisor
Delivery row	Ready for delivery	Advisor or cashier

This table should exist physically and digitally.

If a vehicle is parked in “Awaiting parts,” the repair order should show the same status. If the vehicle moves to “Ready for delivery,” the advisor should know before the customer arrives.

A clear vehicle staging area prevents blocked bays, status confusion, and repeated manual checking.

2-Bay Auto Repair Shop Layout

A 2-bay auto repair shop layout needs simplicity.

Recommended layout logic:

• Reception near the entrance

• One intake or inspection space

• Two working bays

• Compact parts storage near the bays

• One waiting-for-parts or waiting-for-approval space

• One delivery parking spot

In a 2-bay shop, the owner or manager may know every job personally. But even here, blocked bays can reduce output quickly.

The main mistake in a 2-bay shop is using a working bay as a waiting area. If one vehicle waits for approval or parts inside a bay, half the shop’s production space is blocked.

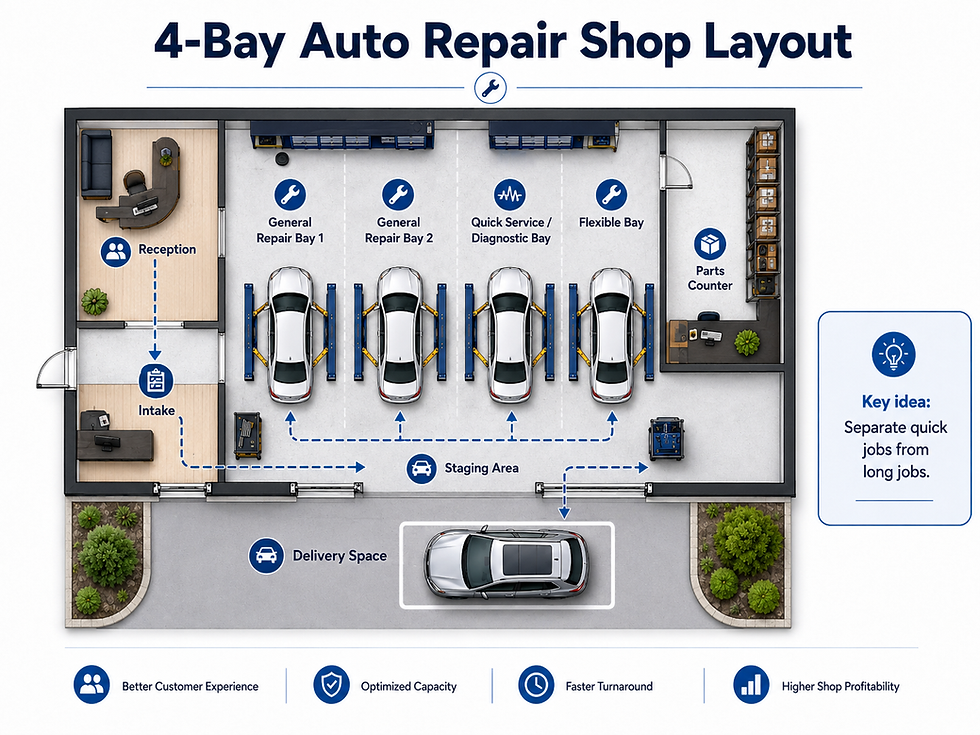

4-Bay Auto Repair Shop Layout

A 4-bay auto repair shop layout needs better separation.

Recommended layout logic:

• Intake space separate from working bays

• Two general repair bays

• One quick-service or diagnostic bay

• One flexible bay for longer jobs

• Parts counter near the center of technician movement

• Staging area split by job status

• Clear delivery space

At this size, the biggest risk is mixing quick jobs with long jobs. A fast service should not be trapped behind a vehicle waiting three days for parts.

The 4-bay stage is also where verbal coordination starts getting weaker. The owner may still know what is happening, but technicians, advisors, and parts staff need a shared view of job status.

6-Bay Auto Repair Shop Layout

A 6-bay auto repair shop layout needs workflow control.

Recommended layout logic:

• Dedicated intake lane

• Diagnostic bay

• Quick-service bay

• General repair bays

• Long-job or fleet bay if needed

• Centralized parts issue point

• Separate parking for waiting-for-parts vehicles

• Quality check area

• Delivery row

• Manager visibility into all active jobs

At this size, the shop needs visible repair status, technician assignment, parts tracking, and promised delivery control.

This is where garage management software becomes less of a back-office tool and more of an operating layer.

Small Mechanic Shop Layout Mistakes That Slow Down Work

Small shops often lose time for simple reasons. The layout may have grown around habit instead of workflow.

Common mechanic shop layout mistakes include:

• Using active bays as waiting areas

• Keeping fast-moving parts too far from technicians

• Mixing customer parking with repair staging

• Placing reception where the advisor cannot see intake

• Allowing customer paths to cross the repair floor

• Storing tools and equipment wherever space is available

• Having no clear delivery area

• Tracking job status only by memory

Small shops do not always need more space. Often, they need clearer zones and fewer unnecessary movements.

Layout Bottleneck Scorecard

Use this scorecard to audit your current shop.

Score each item:

• 0 = No

• 1 = Partly

• 2 = Yes

Layout Question	Score
Are vehicles staged by job status?	0 / 1 / 2
Are waiting-for-parts vehicles kept out of active bays?	0 / 1 / 2
Can technicians access fast-moving parts quickly?	0 / 1 / 2
Can advisors see job status without walking to every bay?	0 / 1 / 2
Is customer parking separate from repair staging?	0 / 1 / 2
Is there a dedicated quality check area?	0 / 1 / 2
Are shared tools and equipment easy to access?	0 / 1 / 2
Is the customer path separate from the repair floor?	0 / 1 / 2
Are parts issued and returned against a repair order?	0 / 1 / 2
Is delivery space clear and easy to access?	0 / 1 / 2

Score meaning:

• 0 to 7: Layout is creating daily friction

• 8 to 14: Layout works, but bottlenecks are costing time

• 15 to 20: Layout supports higher throughput

This is not an engineering score. It is an operations score. It shows where your floor plan is slowing the business.

How Digital Workflow Supports Physical Layout

A physical layout controls where the vehicle moves. A digital workflow controls where the job moves.

The two need to support each other.

A shop may have the right bay placement, parts room, and staging area. But if repair orders are still tracked on paper, spreadsheets, or disconnected tools, the team will still waste time asking basic questions:

• Which technician owns this job?

• Has the customer approved the estimate?

• Are the required parts available?

• Has the part been issued?

• Is the vehicle waiting for quality check or delivery?

• Was the customer updated?

This is where Autorox fits naturally into the layout conversation. A connected workshop system helps the team manage appointments, digital job cards, work orders, approvals, technician assignment, invoicing, inventory, and workflow visibility in one place.

Software does not replace layout. But it makes the layout easier to run.

If a vehicle is physically in the “Awaiting parts” area, the repair order should show that status. If a bay is open, the scheduler should know. If a technician is overloaded, the manager should see it before delivery promises slip.

That is how a shop moves from full bays to productive bays.

Auto Repair Shop Layout Checklist

Use this auto repair shop layout checklist before building, renovating, or reorganizing your shop.

Customer Area

• Is reception easy to find?

• Is the waiting area separate from active repair work?

• Can customers pay and collect vehicles without entering the shop floor?

• Is delivery clearly marked?

• Is customer parking separate from repair staging?

Vehicle Flow

• Is there a clear path from intake to repair to quality check to delivery?

• Do waiting vehicles block working bays?

• Are tow-ins and non-running vehicles planned for?

• Are vehicles waiting for approval separated from vehicles waiting for parts?

• Are completed vehicles easy to access at handover?

Service Bays

• Are bays sized for the actual vehicle mix?

• Is there enough room for lift operation, doors, tool carts, and technicians?

• Are shared tools and equipment placed logically?

• Are walkways clear and safe?

• Are quick jobs separated from long jobs where possible?

Parts Flow

• Is the parts room close enough to reduce walking?

• Is stock controlled, not just stored?

• Is there a clear receiving and return process?

• Are parts connected to repair orders?

• Are fast-moving parts easy to access?

Technician Movement

• Can technicians access tools, parts, and job details quickly?

• Is shared equipment easy to reach?

• Does the layout reduce unnecessary walking?

• Can technicians see their next assigned job?

• Are work areas clear enough for safe movement?

Information Flow

• Can advisors see repair status without walking to every bay?

• Are approvals tracked clearly?

• Can managers see stuck jobs?

• Is delivery readiness visible before the customer arrives?

• Are repair orders, parts, invoices, and customer updates connected?

Safety and Compliance

• Are walking paths clear?

• Are wet areas controlled?

• Are lifts installed according to professional requirements?

• Are ventilation, drainage, electrical, fire safety, and local building rules reviewed by qualified professionals?

• Are customer areas separated from active repair work?

Final Thought

The best auto repair shop layout is not the one that fits the most cars.

It is the one that helps the shop complete more quality repair orders with less confusion.

Plan the bays. Plan the parts flow. Plan technician movement. Plan staging. Then connect the physical layout to a digital workflow that shows what is happening in real time.

That is how a repair shop gets more from the space it already has.

If your shop is planning growth, adding bays, or trying to improve turnaround time without adding more space, schedule a demo with Autorox and see how connected workshop management can support the way your repair shop actually works.

FAQs

What is the best layout for an auto repair shop?

The best layout for an auto repair shop separates customer intake, vehicle staging, service bays, parts storage, quality check, and delivery. The goal is to reduce unnecessary movement for vehicles, technicians, parts, and service advisors while keeping the customer path separate from the repair floor.

What should an auto repair shop floor plan include?

An auto repair shop floor plan should include reception, waiting area, vehicle intake, service bays, parts room, tool storage, vehicle staging, quality check, delivery parking, customer parking, and safe movement paths for technicians and vehicles.

How much space does an auto repair bay need?

Auto repair bay size depends on vehicle type, lift model, equipment, ceiling height, door clearance, and local rules. Many passenger-vehicle layouts use planning ranges around 12 to 15 feet wide and 24 to 30 feet deep, but larger vehicles and specialized equipment may require more space.

Where should the parts room be placed in a repair shop?

The parts room should be close enough to service bays to reduce technician walking time, but controlled enough to track parts usage, returns, and stock movement. For larger shops, receiving, issue, storage, and return areas should be clearly separated.

How can a small auto repair shop improve layout without expanding?

A small auto repair shop can improve layout by separating intake from working bays, marking staging areas by job status, placing fast-moving parts closer to technicians, keeping customer paths away from the repair floor, and using digital repair order tracking to reduce manual status checks.

Why is vehicle staging important in auto repair shop layout?

Vehicle staging prevents blocked bays and unclear job status. Shops should separate vehicles waiting for diagnosis, approval, parts, repair, quality check, and delivery so the team knows why each vehicle is parked and what needs to happen next.

How does software support auto repair shop layout?

Software supports auto repair shop layout by making repair status, technician assignment, parts availability, customer authorization, and delivery readiness visible. Physical layout shows where the vehicle is. Digital workflow shows where the job stands.
